Technical Sheet

Structure tent - Medium Beam

Back
  • Home
  • Technical Sheet - Structure tent medium

Structure tent - Medium beam

Technical Sheet

Download the full technical sheet
Read more Close
  • Canvas sliding system in a round profile rail (Keder)
  • Wind resistance up to 140 km / h
  • Versatile and standard parts
  • Compatible with our other models
  • Interchangeable legs and rafters
  • Square rail allows quick and economical attachment with a standard half-inch bolt
  • Double roof option for better insulation Anticondensation (excellent option for winter tents)
  • Sliding of the walls by small rollers also for rail keder

    • Read more Close

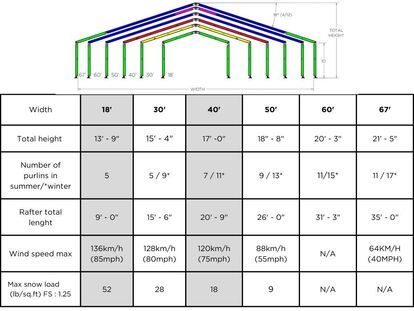

    Dimensions

    Tableau HTML
    Width 18'30' 40'50'
    Total  Height  13'-9" 15'-4" 17'-0"18' - 8"
    Number of purlins in summer/*winter 5 5/9* 7/11"9/13*
    Rafter total lenght  9' - 0" 15' - 6" 20' - 9"26' - 0"
    Wind speed max  136km/h
    (85mph)    		 128km/h
    (80mph)    		  120km/h
    (75mph)    		88km/h
    (55mph)
    Max snow load (lb/sq.ft) FS : 1.25 52 28 189

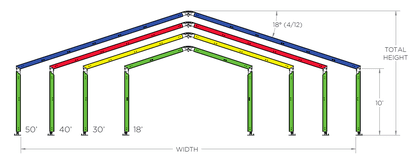

    structure tent mega dimensions

    Structure & medium profile

  • Dimensions: 2,40’’ X 8.00’’
  • Anodized 6005-T5 aluminum extrusion
  • Other parts in ASTM A36 and A514 Gr.S (CHT100) zinc plated steel
  • Steel cables 1/4 ‘’ - 7X19 white vinyl coated
  • Square rail for ‘Bolt-On’ attachment system (pendant lights, decor, etc.)
  • Universal bolt 1/2’’ - 13 Gr. 5

    • Vinyl

  • Coated vinyl 22oz
  • NFPA 701 and CAN / ULC-S109 fire retardant
  • Opaque to UV rays (Blackout)
  • Anti-mold vinyl
  • All vinyl parts inserted in the Keder rails (13mm)
  • Rollers for wall opening
  • Carrying bags of vinyl parts included

    • Tinted French windows

    Clear French windows

    Plain (no window)

    Panoramic tinted window

    Panoramic clear window

    Color, printing and stickers
